Recognized for excellence in design, performance, and innovation. Our award-winning products set the standard for modern backlighting. Developed over the past 20+ years by the most experienced backlighting team in North America.
We have used the last 20+ years of experience to craft the next generation of backlighting tools.

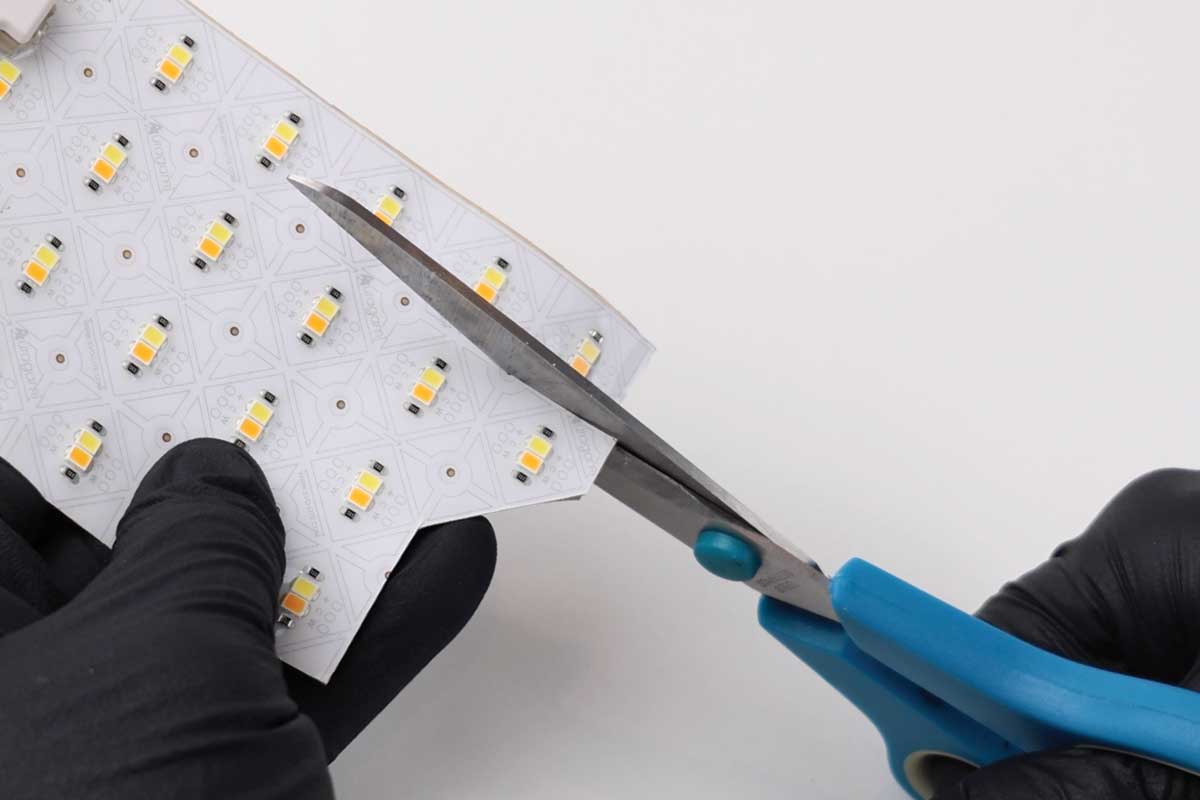

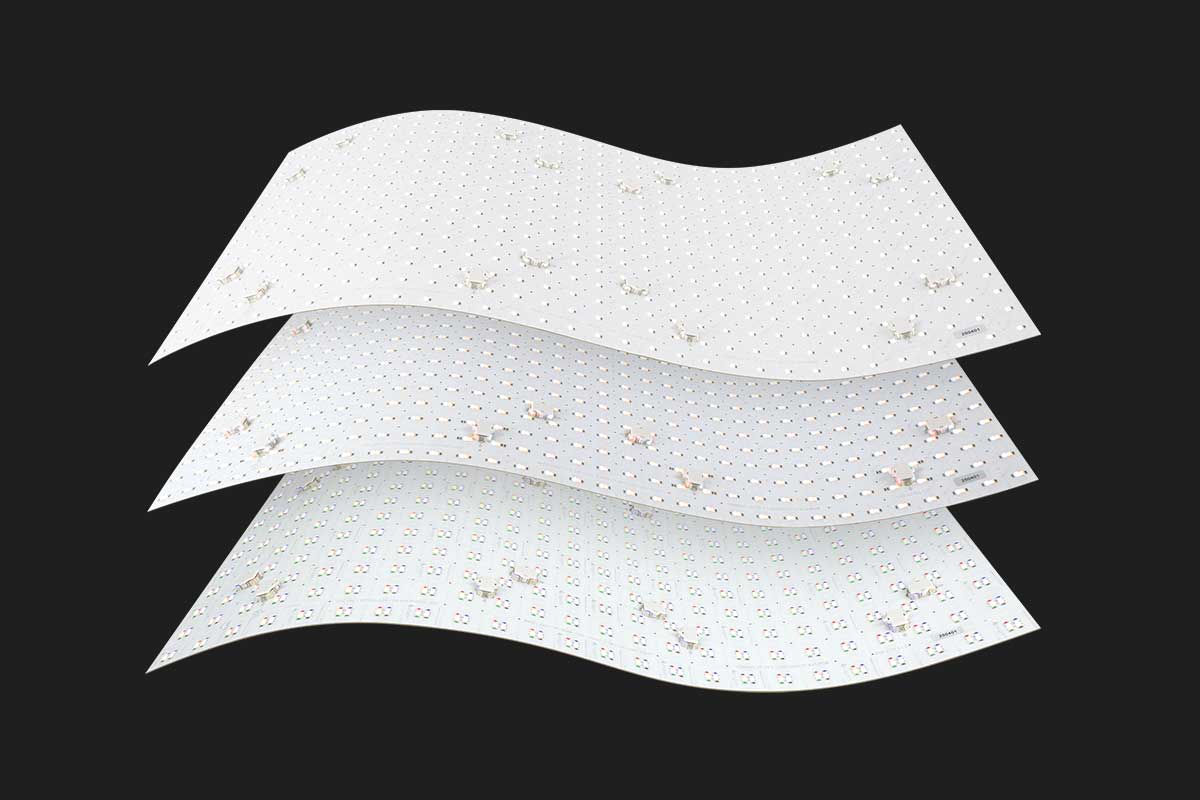

Patented Flexible LED Light Sheets can be cut to-size right on the jobsite. Multiple options to fit any project.

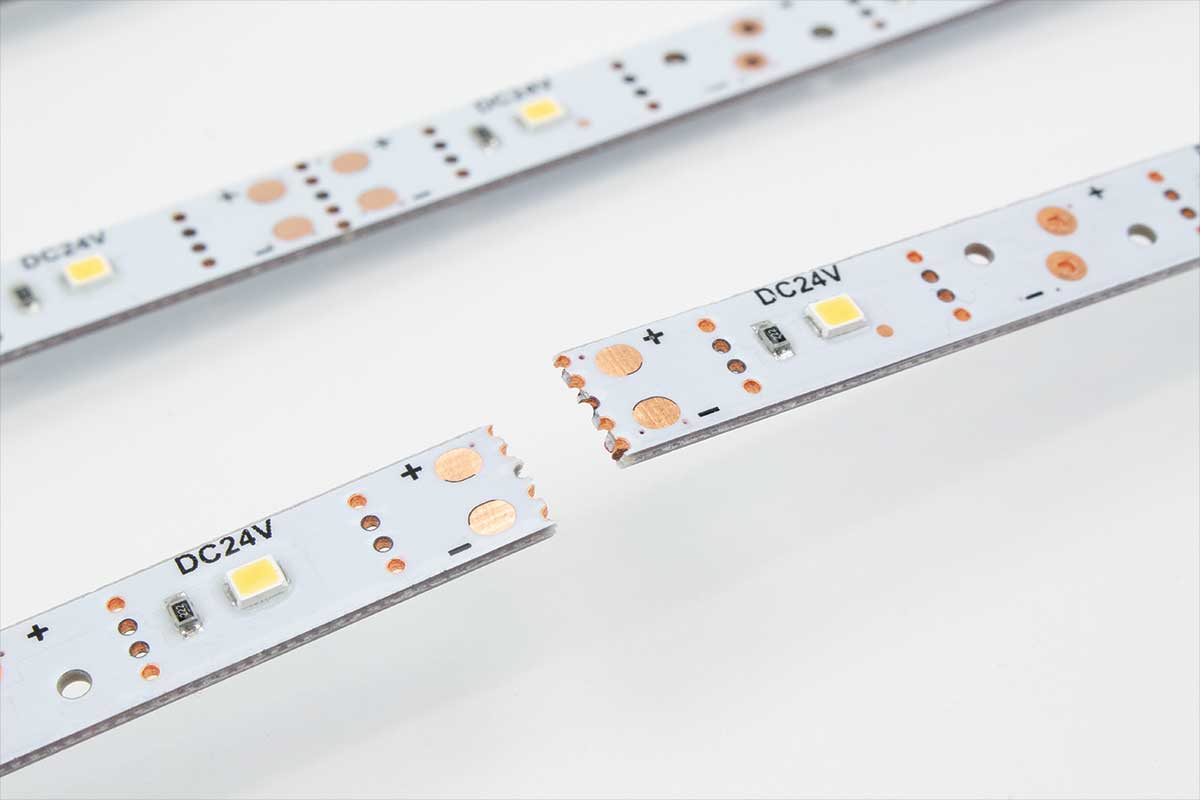

Learn morePatented TRAX LED Arrays can be snapped to-size right on the jobsite. Perfect for medium to large projects
Learn moreCustom-built to your exact specifications. Offers low-profile builds but cannot be modified in the field.
Learn more

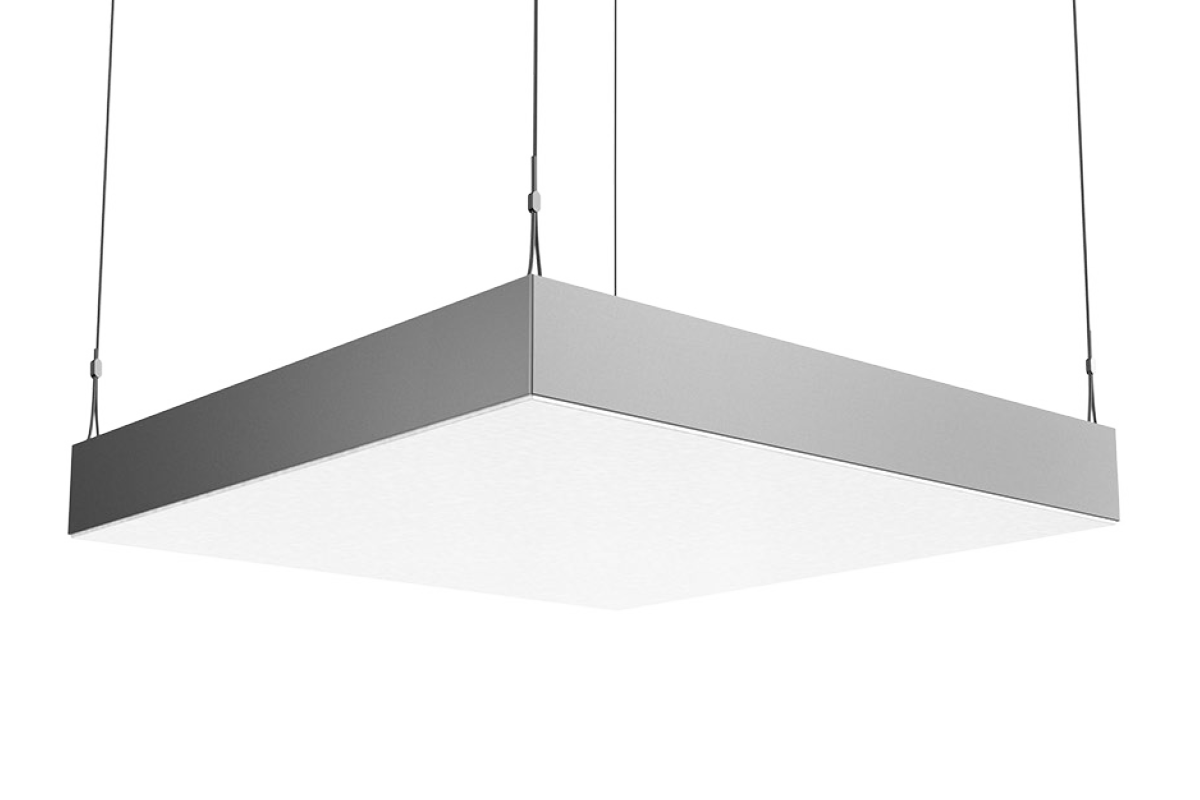

Finished fixtures include the light engine, frame, and diffuser - create backlit graphics or general lighting.
Learn moreBest for: any size project where final dimensions may be inexact or unknown. Allows users to cut and/or fold.
Size: 12 x 24” or 9.45 x 19.8”
UL Listed field-cuttable
24VDC Constant Voltage
17.2 or 11 watts / sheet
Up to 1,720 lumens / sheet
95+ CRI
LED Pitch: tight LED spacing
Plug-in power and sheet connections
IP67, IP65 rated for wet locations
Cover up to 10ft2 / Class 2 Circuit
Suggested applications: counters, feature walls, floors, signage, graphics, faux skylights
Best for: medium to large projects where final dimensions may be inexact or unknown. Can be snapped and cut to-size.
Size: 24 x 96"
UL Listed field-cuttable
24VDC Constant Voltage
86 watts / array
Up to 9,400 lumens / array
95+ CRI
LED Pitch: tight LED spacing
Bare wire power connections
IP65 rated for wet locations
Cover up to 16 ft2 / Class 2 Circuit
Suggested applications: feature walls, facades, stretched ceilings, faux skylights
Best for: specified projects that have exact dimensions and engineer drawings. Custom crafted at the factory, no field adjustments.
Size: custom built to your specifications
UL Listed, not modifiable
24VDC Constant Voltage
~4.4 watts / foot
1,720 lumens / sheet
95+ CRI
LED Pitch: powerful edgelit design
Bare wire or barrel connector
IP20 dry locations
Coverage depends on panel specs
Suggested applications: signage, counters, OEM, product integration, shelving
Designed to be user-friendly. Our easy-to-follow instructions will make you a pro in no time.
From brightness to color accuracy, our products deliver the best specs in their class.
Evo-Lite holds several patents. You won't find these advanatages anywhere else.
Many of our products can be shaped in the field to fit your exact application.
All of our products are available in single color white, tunable white, and RGBW.
Our team is there every step of the way with great tips and tricks to master your project.
Our products offer a 50,000 hour rated life. At 8 hours a day, you'll enjoy over 17 years of use.
Tight LED pitches and smart designs produce smooth and consistent lighting.
No matter if you are just starting your research, need a sample, or are ready to request a quote - our team is standing by waiting to help answer all of your questions. Contact us today!
