Auragami Gen 2 (AG2) debuts with several category-first innovations and is a testament to the tireless work of Evo-Lite's ingenuity, imagination, and determination. It debuts as the most advanced light sheet ever created. Available in single color white, tunable white, and RGBW.

TRAX Single color white

Never before seen Features

Groundbreaking innovations that mark a significant leap forward in the light sheet category.

Download the Overview Brochure
AG2 next generation LED light sheet connectors

Reliable Plug-in Connections

AG2 sports the most robust connections of any light sheet product ever. Prevent liquid and corrosion ingress for long-lasting, reliable sheet or power connections.

Auragami flexible light sheet generation 2 premium protective coating

New Protective Coating

Newly engineered, ultra-thick polyimide coating provides a category-best durability. This results in incredible liquid and damage resistance while still being easy to cut.

Auragami flexible light sheet generation 2 easy cuttable light sheet

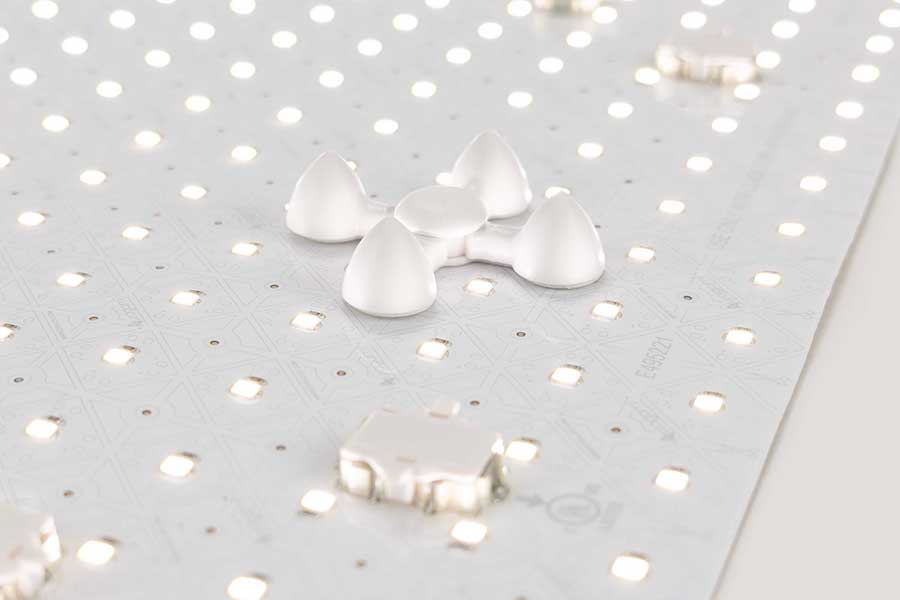

Patent Pending Quad Bumpers

AG2 Quad Bumpers support up to 1600lbs (4X more than previous), offer integrated 1-step light sheet mounting, and now allow heavy materials to be slid into place!

Auragami flexible light sheet generation 2 cuttable light sheet

Easy Cut-Line Path

Cutting the light sheet is easier than ever with the AG2 cut line path. Create clean straight cuts in-between the lines for flawless results of any size or shape.

Best flexible LED light sheet tunable white adjustable cct range 1800K to 6500K

Extended Range Tunable

AG2 Tunable White's CCT range now offers a category-best adjustable white range. Choose from relaxing 1800K candlelight to energizing 6500K bright white.

AG2 LED light sheet easy mounting with pre-drilled holes

Pre-aligned Mounting Holes

Pre-drilled holes make fastening the light sheet more  straightforward and user-friendly. Simply insert the screw tip into the hole for fast and accurate results.

Auragami Gen 2 is cuttable

Supremely Adaptable,
INFINITELY shapable.

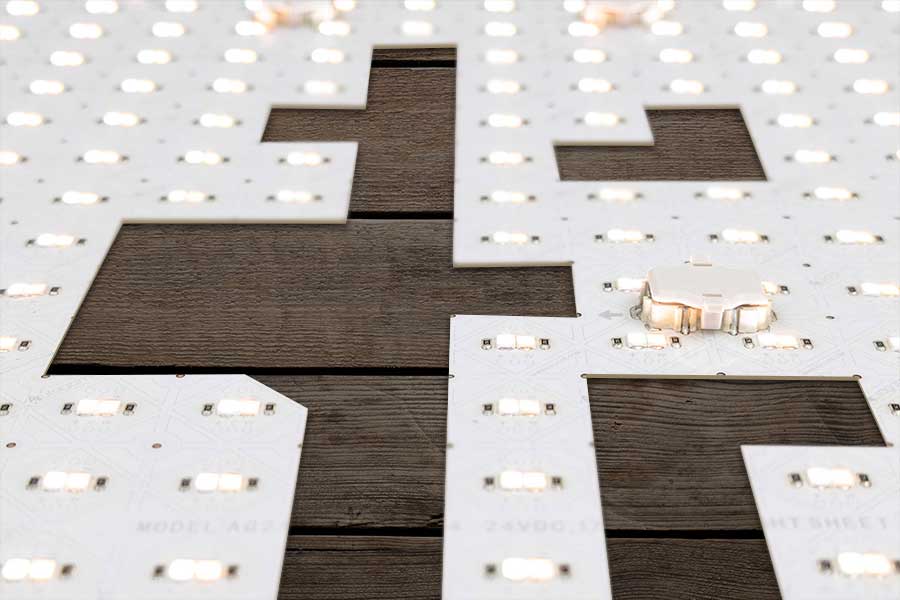

Auragami Flexible LED Light Sheets are engineered with 100% resilient circuitry. This means that the product can be cut down to a single LED/LED group without issue. Make cuts horizontally, vertically, and/or diagonally to create the perfect fit in any application.

Mighty Performance, Responsible Efficiency.

AG2 boasts an impressive 100 lumens per watt and was meticulously engineered to maximize the 24VDC Class 2 Circuit, covering up to 10 square feet. This is accomplished by using the advanced type 2835 LEDs that are able to generate 20% more luminance while using less wattage (when compared to 5050 LEDs).

Learn more about light refraction science
Auragami Gen 2 single color light sheet saves energy, bright, cuttable, flexible, best, affordable

Light Sheets for Every Situation

Two new performance options deliver a solution for any specification or budget.

Auragami Gen 2 best LED light sheet award winning flexible cuttable single color

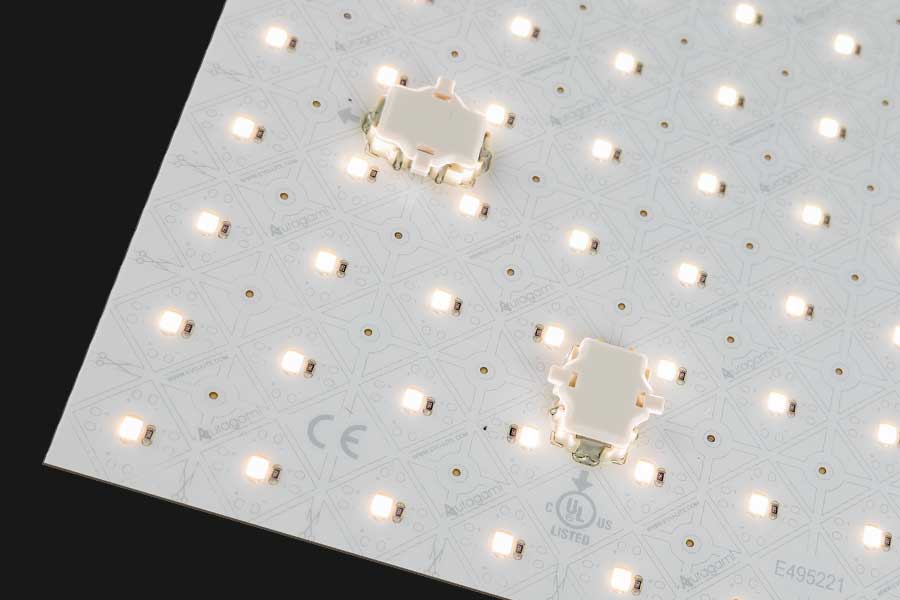

Single Color White

AG2-SCW

High performance single color white light sheets in 2700K, 3000K, 3500K, 4000K, and 5000K.

Learn More
Auragami Gen 2 best LED light sheet award winning flexible cuttable tunable white adjustable cct

Tunable White

AG2-TW

High performance tunable white light sheets in extended range 1800-6500K adjustable CCT.

Learn More
Auragami Gen 2 best LED light sheet award winning flexible cuttable RGBW 5000K color changing fx

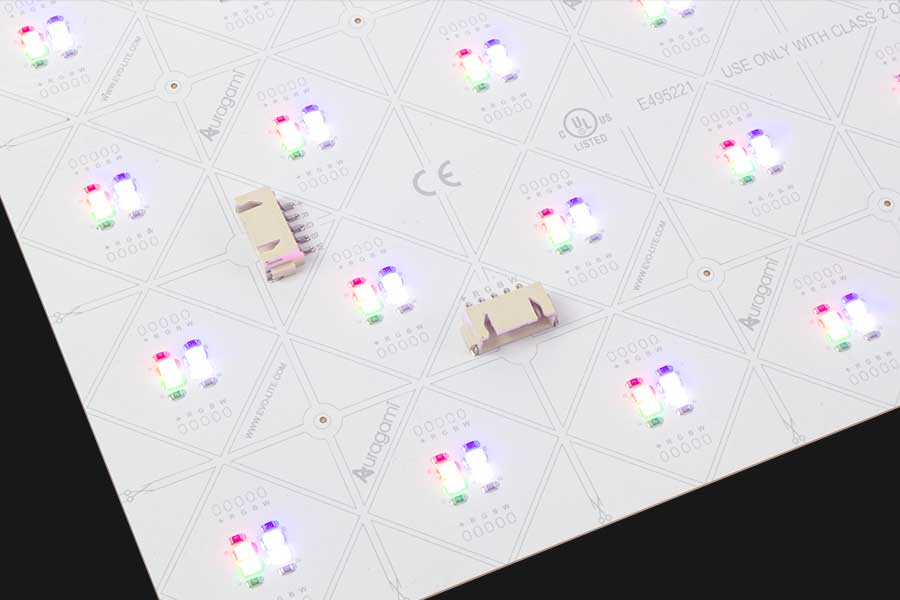

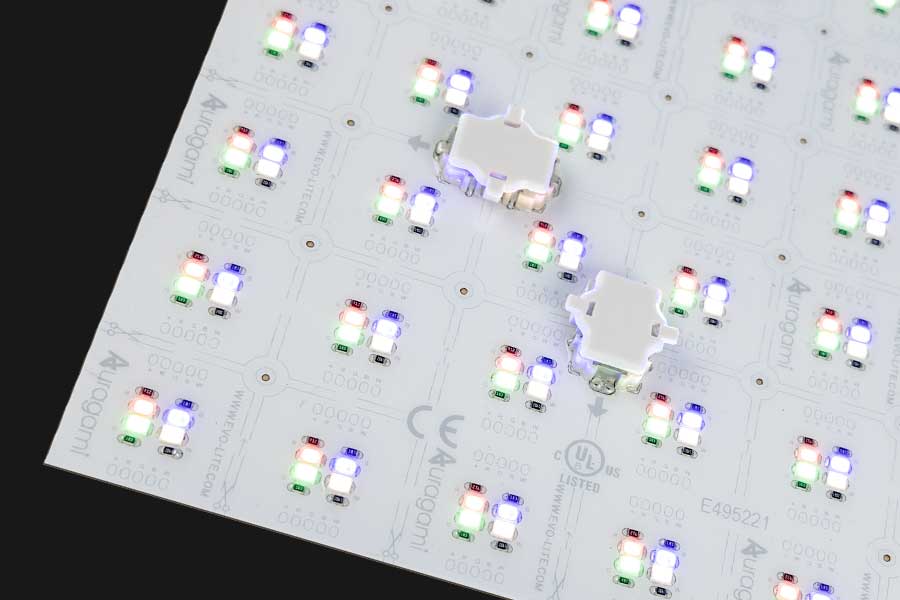

RGB + White

AG2-RGBW

High performance RGBW light sheets with billions of deeply saturated colors and dedicated 5000K white.

Learn More
AG2B-SCW Auragami basic best single color white flexible cuttable led light sheet

Basic Single Color White

AG2B-SCW

Streamlined single color white light sheets in 2700K, 3000K, 3500K, 4000K, and 5000K. Lensed optional.

Learn More
AG2B-TW Auragami basic best tunable white adjustable CCT flexible cuttable led light sheet

Basic Tunable White

AG2B-TW

Streamlined tunable white light sheets in extended range 1800-6500K adjustable CCT.

Learn More
AG2B-RGBW Auragami basic best flexible cuttable led light sheet

Basic RGB + White

AG2B-RGBW

Streamlined RGBW light sheets with billions of deeply saturated colors and dedicated 5000K white.

Learn More

Product Line SpecificationS

Electrical

Input Voltage

24 Volt DC – Constant Voltage

Power Consumtion

17.2W per sheet (8.65W/ft2, 93.1W/m2); 0.14W per LED

Wires

20AWG (see individual spec sheets)

Certification

cULus Listed (E495221), UKCA, CE Compliant (EMC and LVD), and RoHS Certified

Physical

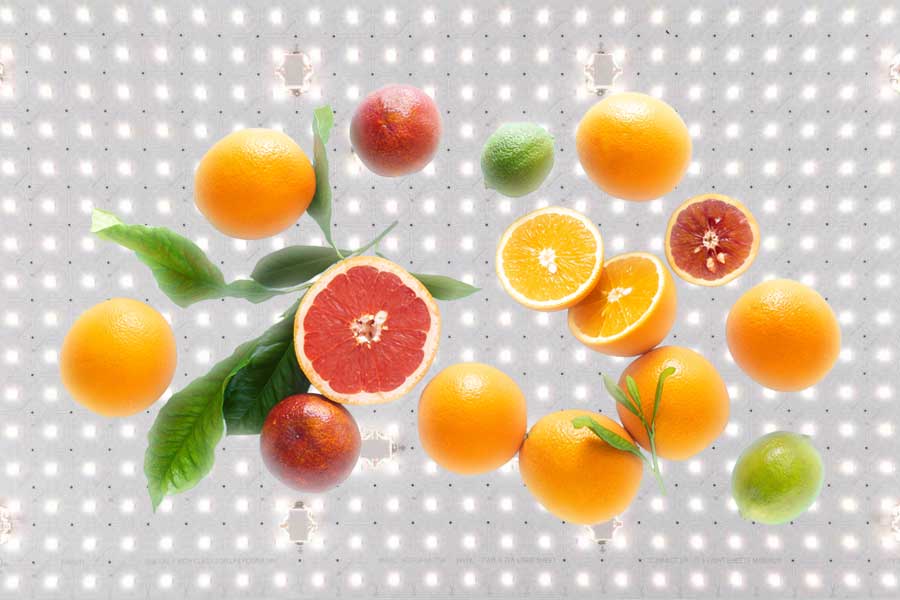

Color Rendering Index

95+ CRI

Light Output

1720 lumens per sheet

Dimmable

Dimmable from 0-100%

Mounting

Direct sheet mounting with mechanical fasteners. Supplementary 3M adhesive backing.

Environment

IP67 (AG2) for wet locations, IP20 (AG2B) for dry locations

Dimensions

12" x 24" (305 x 610mm)

Cut Increments

Cuttable down to a single LED/LED group.
AG2 SCW/TW: 0.75", AG2 RGBW 1.00", AG2B 1.5"

LED Type

2835 SMD

Product Weight

0.65lbs / 10.4oz / 295g (varies by sheet type)

Features

Field Customizable

Maintains UL Listing when cut

PCB Construction

Flexible / foldable, polyimide film substrate

Quality Control

Tight ANSI bin control LEDs

Energy Efficiency

100 lumens per watt

Rated Life

50,000 + hours

Warranty

5-year warranty / Learn more

Power & Controls

Compatible with full range (100%-0%), flicker-free power, and control components. Quality tested for low-end light output consistency across all LEDs. Please contact Evo-Lite for optimal solutions to fit your requirements.

Product Wiring & Control Advisory

1. The light sheet's integrated connection blocks have a 4A capacity. Do not exceed the load capacity of these connection blocks in any configuration.

2. To retain Class 2 compliance per UL regulation use one 96W 24VDC Class 2, LPS, or LVLE power supply / channel to interconnect up to 5 light sheets (86W). Best practice includes allowing headroom for power supply longevity.

See Spec Sheets for more information.
