Delivering essential lighting performance at an unbeatable value: built for flexibility, engineered for reliability, and priced for scale.
Learn about Auragami Elements and what makes the product line great.
Download the Overview Brochure

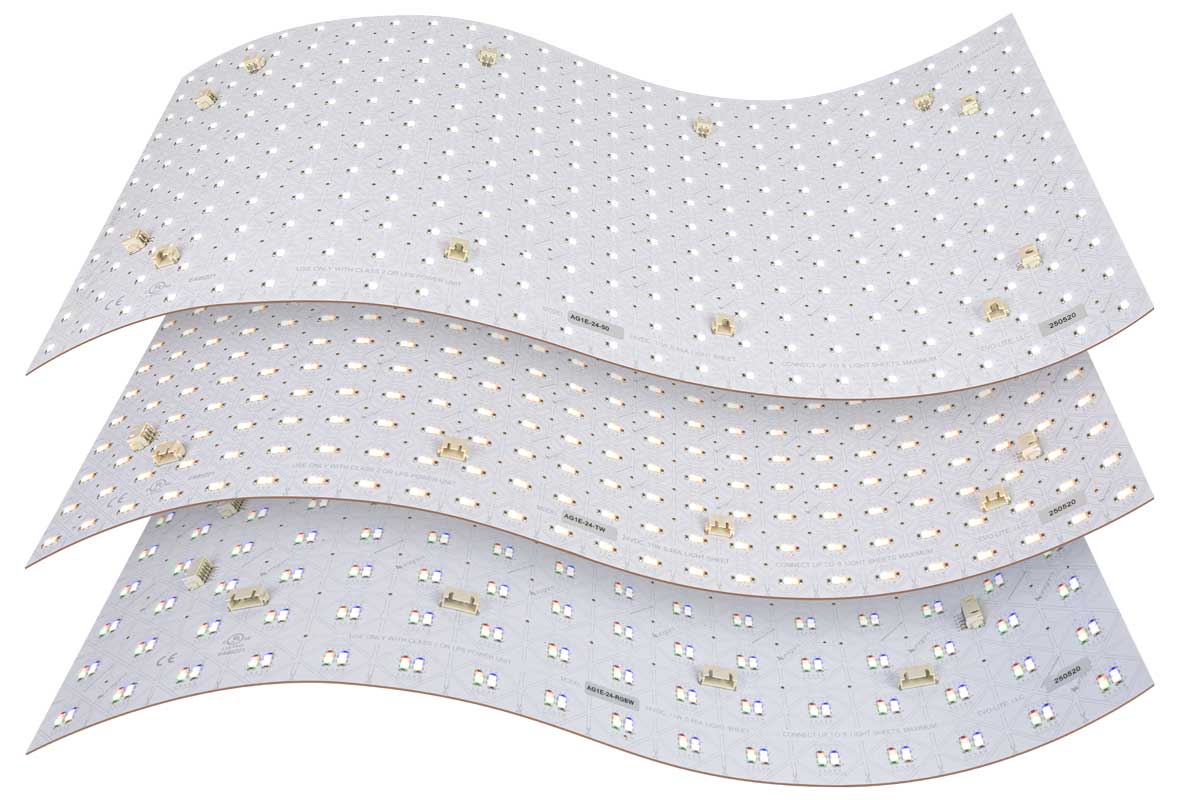

Available in 2700K, 3000K, 3500K, 4000K, 5000K, Tunable White, and RGBW (5000K)
UL-approved horizontal, vertical, and diagonal cut lines around every LED/LED group

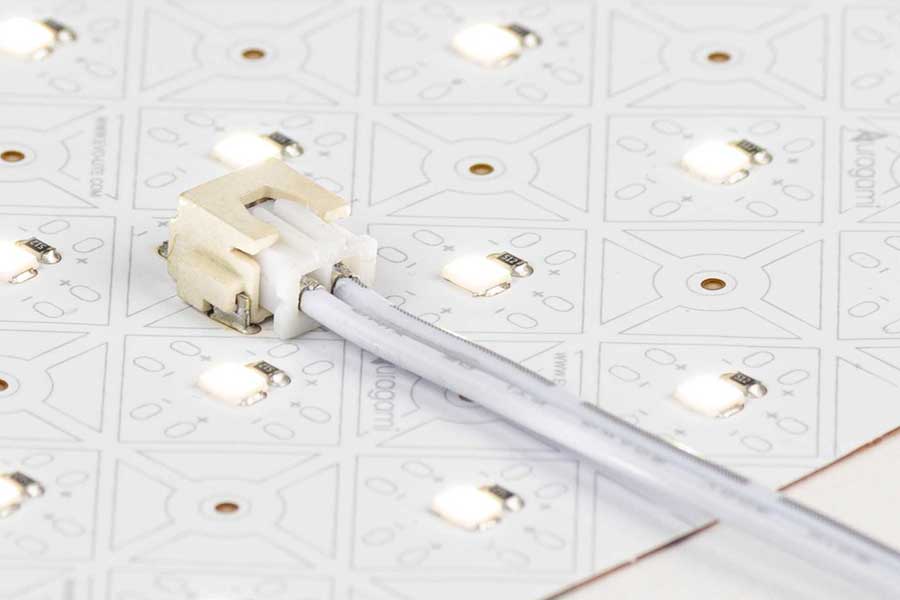

Connect sheets and power using our standard plug-n-play XHP connectors / terminals

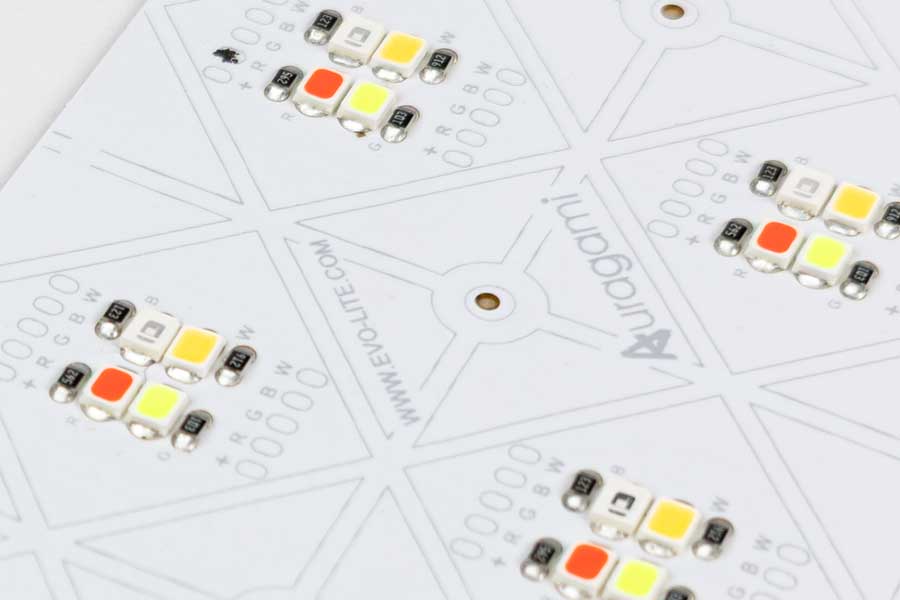

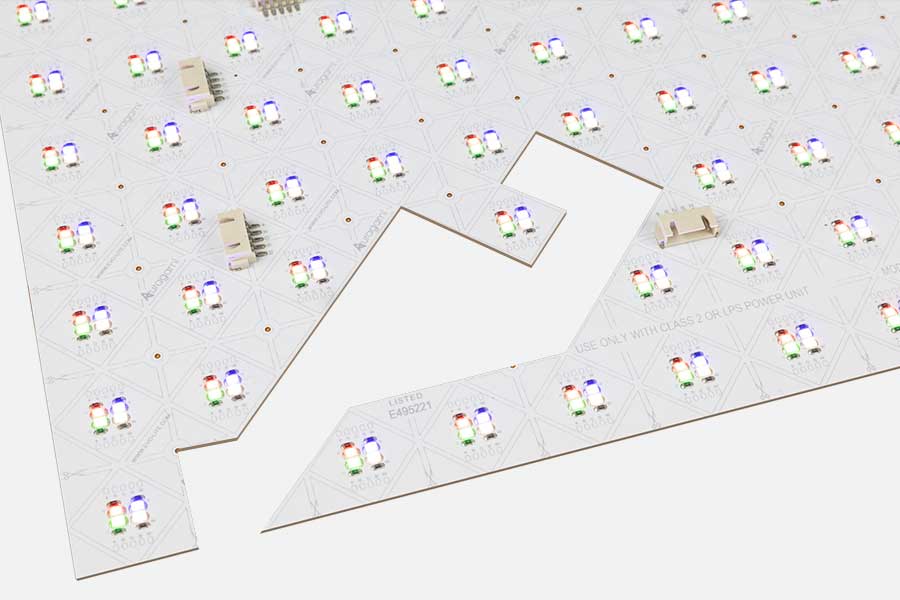

Cut your light sheets to-size and shape with the upgraded, easy-to-follow cut line paths

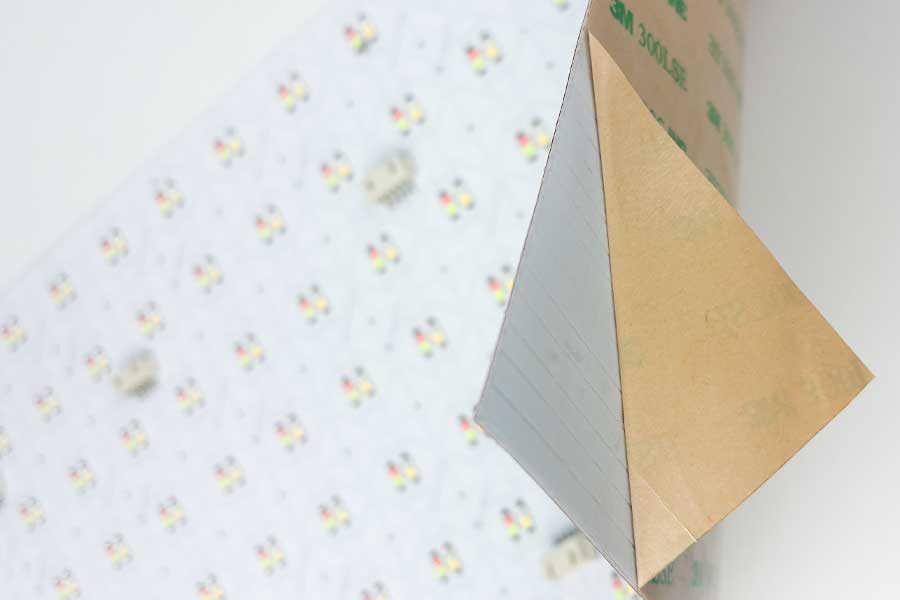

With high-bonding adhesive backing and pre-cut mounting holes - ready for fasteners

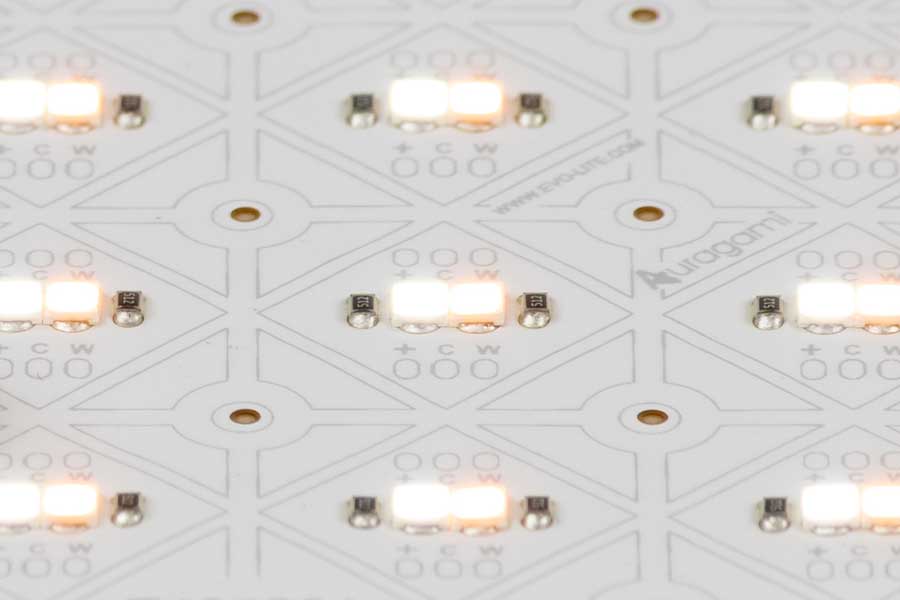

AG1E offers up to 1100 lumens per sheet using just 11 watts (100lm/w efficiency)

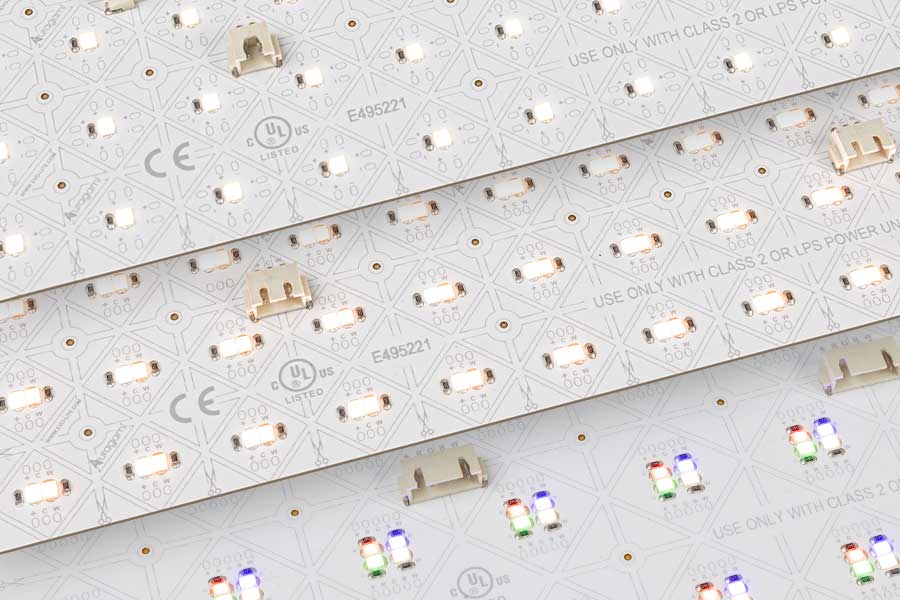

Available in all the most popular colors including single color white, tunable white, and RGBW.
Instruction Manual

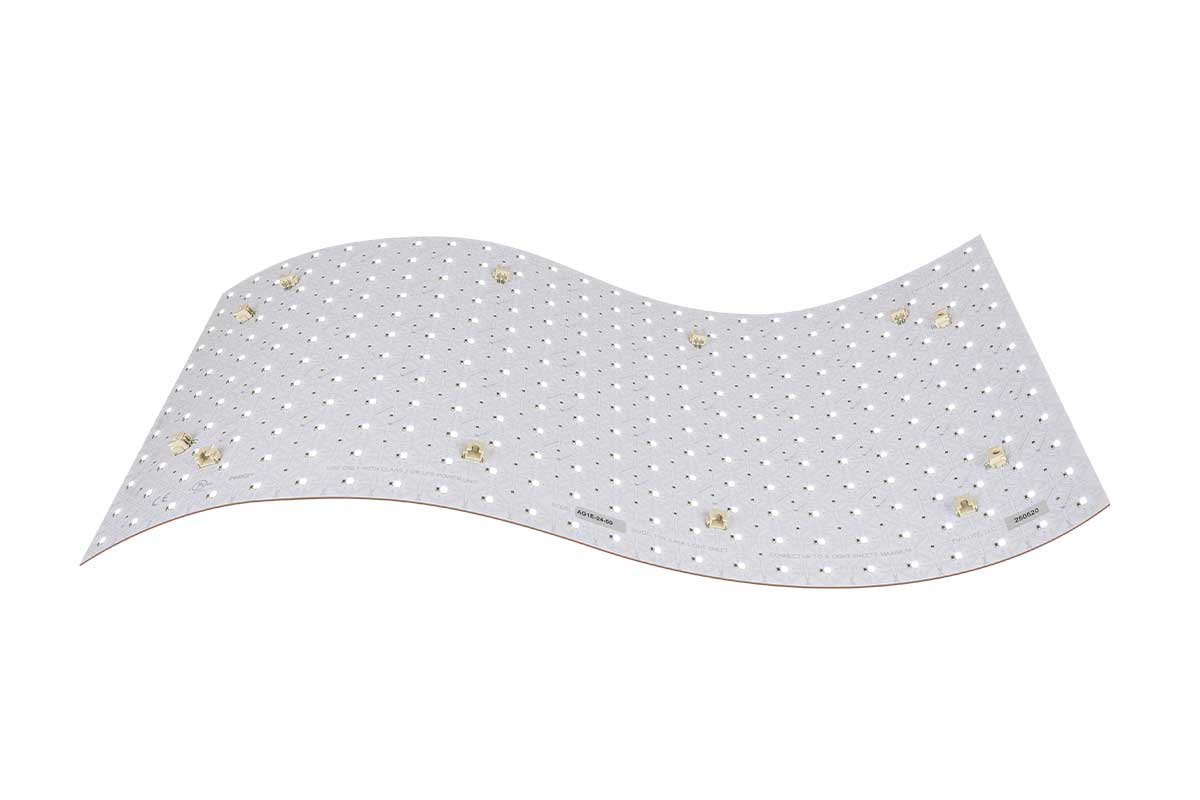

Single color white light sheets in 2700K, 3000K, 3500K, 4000K, 5000K, or custom.

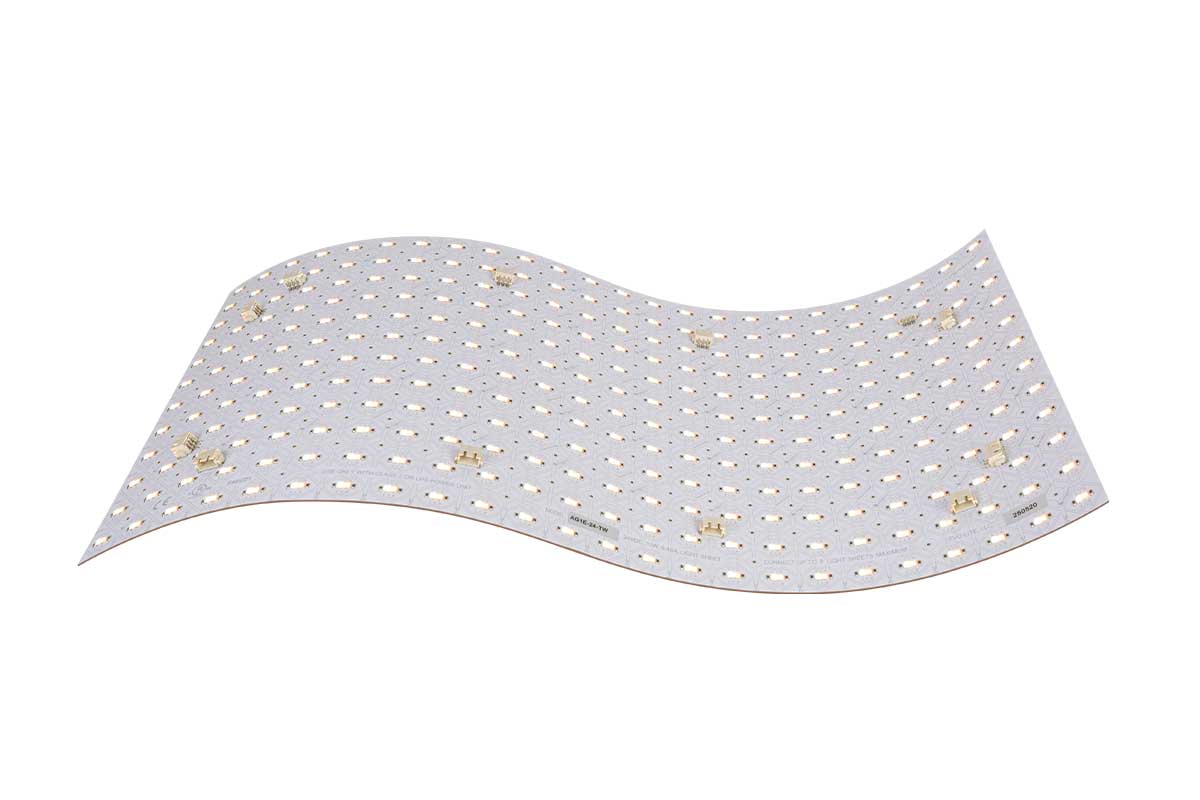

Tunable white light sheets in our exclusive extended range 1800-6500K adjustable CCT.

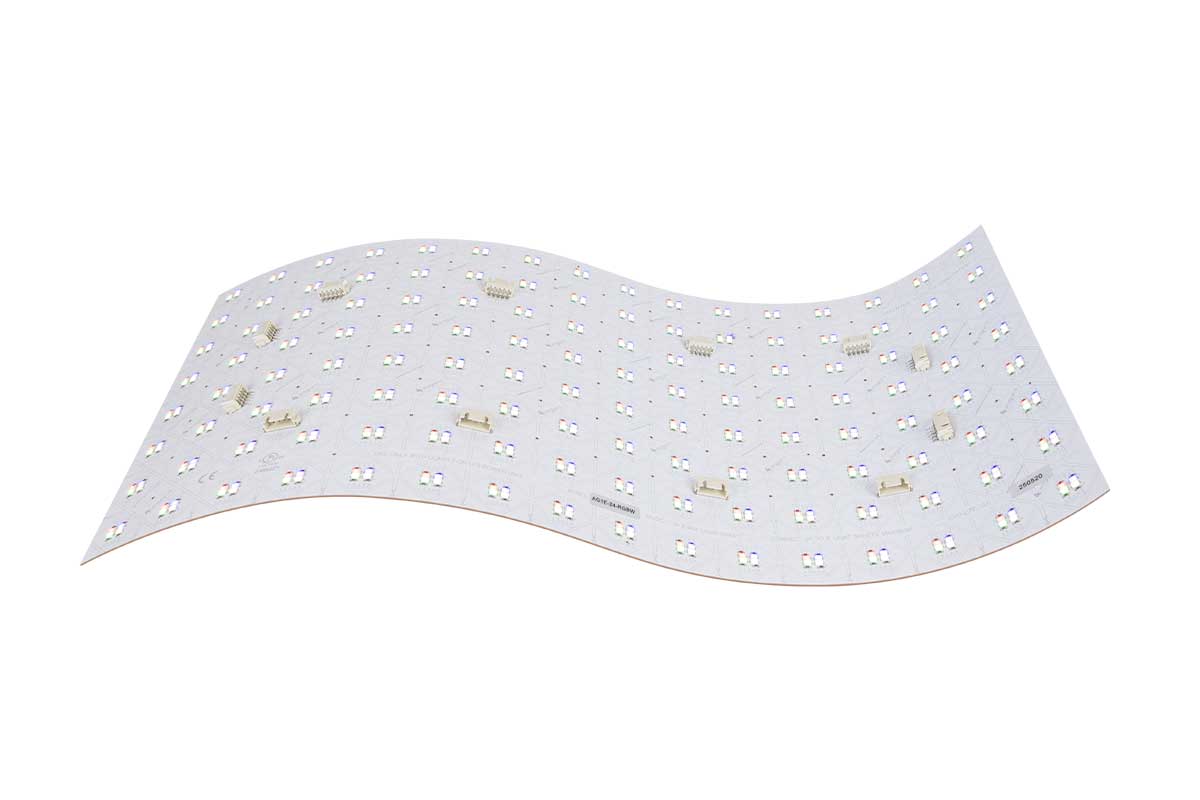

RGBW light sheets with billions of deeply saturated colors and dedicated 5000K white.
24 Volt DC – Constant Voltage
11W per sheet (8.9W/ft2)
Single Color White: 2700K, 3000K, 3500K, 4000K, 5000K / Tunable white: 1800-6500K / RGBW (5000K)
90+ CRI for highly accurate color rendering
1100 lumens per sheet
100 lumens per watt
Type: SMD-2835 LEDs. Count: 288 LEDs. Beam angle: 120°
Single Color White (2-wire) grey striped wire +, white wire – /
Tunable White (sheathed 3-wire) black wire +, white wire – (cool white), yellow wire – (warm white)
RGBW: (sheathed 5-wire) black wire +, red wire –, green wire –, blue wire –, white wire –
12 XHP 2-pin light sheet terminals, plug-n-play sheet connectors.
Adhesive backing and/or mechanical fasteners through precut mounting holes
–13° to 131°F
LED: 108°F. PCB: 99°F. Resistor: 95°F (Measured at ≥2 hours of operation)
IP65 - wet or dry locations
9.45 x 18.9in (240 x 480mm) / UL Listed field cuttable
1.24ft2
Connect up to 8 full light sheets (88W) / 9.9ft2 per Class 2 guidelines
Cut horizontally, vertically, and diagonally. Single Color White: 0.79in (20mm) / every LED. Tunable White: 0.79in (20mm) / every LED group. RGBW: 1.2in (30mm) / every LED group
50,000+ hours
3-year warranty (view terms online at evo-lite.com/legal-documents, section 19)
Check out these great accessories for the Auragami Elements product line.
View all Auragami Elements Accessories2700K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
3000K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
3500K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
4000K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
5000K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
Tunable White 1800-6500K. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
RGB + 5000K white. Includes light sheet, 2 short sheet connectors, and 1 long sheet connector.
48" Power Input Cable for single color white (SCW), tunable white (TW), or RGBW. Plug-in sheet connector end and bare wire end. Powers up to 8 full Elements Light Sheets (88 watts) or one Class 2 circuit.
Short plug-in sheet connector pack used to connect adjacent light sheets for single color white (SCW), tunable white (TW), or RGBW. Sold in packs of 4.
Long plug-in sheet connector pack used to connect offset sheets or to span gaps for single color white (SCW), tunable white (TW), or RGBW. Sold in packs of 4.
Standard light sheet bumpers that can support up to 400lbs each. Sold in packs of 8.
Cable management clips for managing power cables and more. Sold in packs of 8.
WAGO Splicing Connectors. Sold individually.
Auragami Installation Roller. Designed to help evenly apply light sheets' adhesive backing to surfaces.
