Backlighting Design Guide: Choosing the Right LED Light Sheet for Your Application

Backlighting isn’t just about turning something on and making it glow. The difference between a mediocre illuminated surface and a stunning one comes down to thoughtful design choices, reliable components, and understanding how light behaves behind the scenes. That’s where Auragami Gen 2 (AG2) flexible LED light sheets shine – literally and figuratively.

As you move from inspiration to specification, here’s a practical playbook to help you choose the right AG2 configuration, plan for performance, and sidestep the most common backlighting challenges.

‍

Why Backlighting Design Matters

Great visuals start with even, balanced light. Poorly planned backlighting can show hot spots, uneven brightness, color shifts, shadowing, and inconsistent edge lighting – all of which distract from the design intent. Structural materials, diffusion layers, cavity depth, and LED placement all influence the end result.

Choosing a lighting solution that simplifies control over these variables isn’t just convenient - it can save time and money during fabrication and installation.

‍

What Makes AG2 a Smart Choice

Auragami Gen 2 (AG2) represents Evo-Lite’s most advanced flexible LED light sheet platform designed for modern backlit applications. Built for reliability, uniform performance, and installation confidence, AG2 helps reduce layout complexity while improving final surface quality.

Here’s how AG2 supports better design outcomes:

• Smooth, uniform illumination – Flexible high-density LEDs produce consistent light across the surface, reducing hot spots and shadowy areas.

• Modular configurations for any aesthetic – Available in single color white, tunable white with extended CCT range, and RGBW for dynamic color effects.

• Flexible, cuttable format – Easily shape light sheets to fit tricky layouts without interrupting light quality.

• Robust connections and durability – Enhanced connections and coating provide reliability for long-term performance.

• IP67 wet-location option – Expanded install environments for hospitality, retail, and architectural features.

‍

Choosing the Right AG2 for Your Project

The first step in planning is aligning the AG2 variant with your application goals.

Single Color White

Best for straightforward illumination needs where crisp, clean light is the priority. Ideal for backlit walls, feature panels, retail displays, and branded architectural elements that require strong color rendering (CRI) performance and straightforward dimming control.

Tunable White

When you need nuanced control over mood and atmosphere, tunable white enables adjustable color temperature from relaxing warm white to energizing cool white. This is especially useful in hospitality spaces, galleries, and environments where human experience matters.

RGBW

Inject color and vibrancy into your installs without sacrificing quality. RGBW combines a o wide palette f colors with dedicated white for functional lighting plus dramatic effect.

‍

Common Backlighting Pitfalls – and How to Avoid Them

Even with premium light sheets, common design oversights can undermine results. Here’s how to circumvent them:

• Inconsistent Light Spread: This often happen when LED spacing is uneven or when light sheets are broken up across a surface, resulting in visible variation.
  ⮑ Solution: Design with continuous AG2 sheets and plan layouts that reduce seams to ensure smooth, uniform coverage.

• Hot Spots and Shadowing: Too much light in concentrated areas can create glaring points, while gaps create shadows.
  ⮑ Solutions: AG2’s dense LED layout and flexible format reduce the need for complex spacing calculations, leading to smoother effects overall.

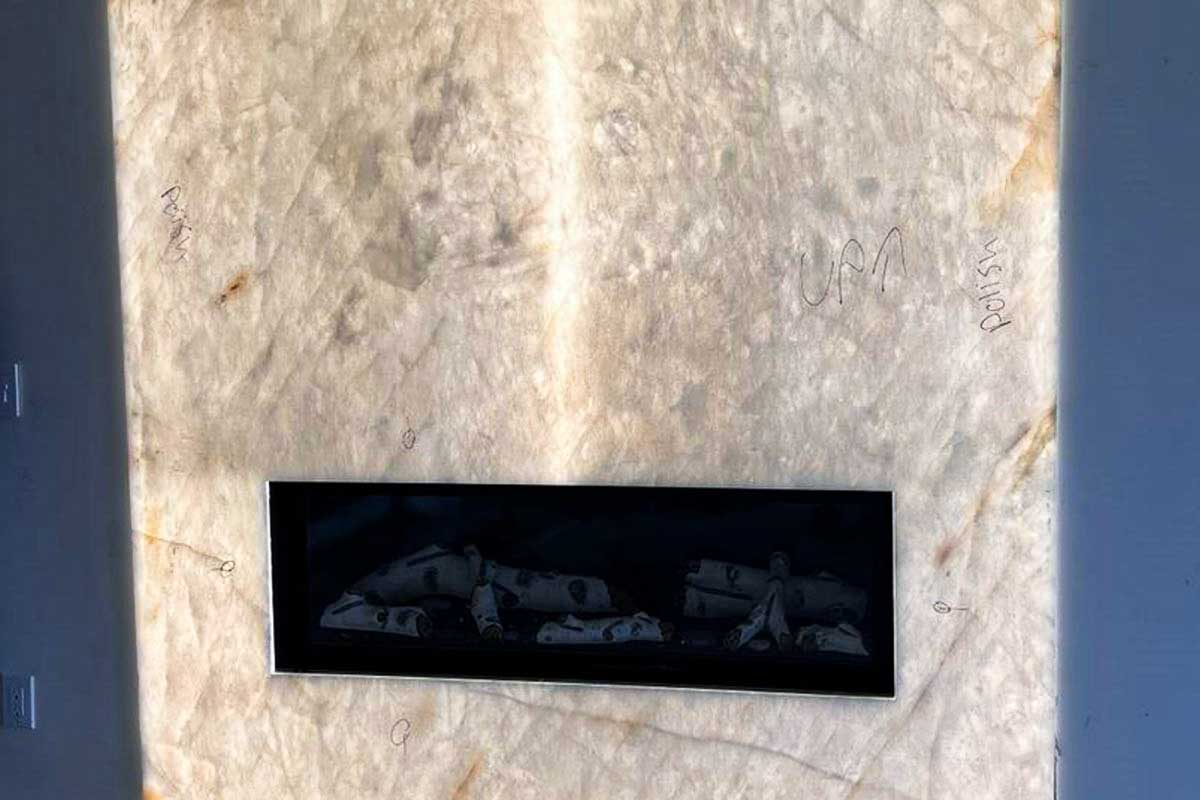

• Material Diffusion Mismatch: Opaque or uneven diffusers can hamper light spread consistency.
  ⮑ Solution: Choose appropriate diffusion materials and test samples with your AG2 sheets during early design phases.

• Power & Control Misalignment: Selecting the wrong driver or mismatched control system can lead to flicker, inconsistent dimming, or reduced light output.
  ⮑ Solution: Simplify specification by pairing AG2 with Evo-Lite’s compatible 24 VDC, Class 2 drivers and integrated control solutions, engineered to deliver stable, long-lasting performance.

‍

Planning for Success: Practical Tips

• Mockup early – Use AG2 samples to evaluate light behavior with your surface materials. Each material offers a wide range of transparencies that you’ll need to account for.

• Map layouts before cutting – AG2’s Sheet Estimator and layout guides help you design more efficiently.

• Account for installation tolerance – Allow for slight variances in cavity depth and surface finish to maintain consistent looks across larger surfaces.

Real Results, Real Confidence

Backlit designs make a big visual impact – but they require precision in planning and execution. AG2 gives designers and specifiers the tools they need to bridge creative vision with practical performance, whether you’re lighting architectural features, retail spaces, branded walls, or hospitality environments.

By selecting the right configuration, planning for uniform illumination, and avoiding common pitfalls, you can transform your next backlighting project from simply illuminated to truly extraordinary.

Want to deepen your design strategy or get layout help? Reach out to our team or check the AG2 product lineup for detailed specs and layout tools.
